0.6/1kV Heat Shrinkable Straight Through Joint
This product contains the following details
ApplIcatIon:
Straight heat shrinkable cable joints are used for jointing power insulation connections, convenient for connection of underground, ground telecom and energy cables, park and garden illumination, underground electrical distribution, pool, any moisture ambient and under water. Resin layer blocks to water, humidity and moisture to pass through the cable.
During the mounting of heat shrinkable joint, do not apply the fire on the tube, surface not fixed, must apply with circular movements
TechnIcal Data:
• Water Absorption: ASTM D 570 ≤ 0.5%
• Electrical Insulation: up to 5kV
• Joint Shrink Point: 110°C
• Joint Hardness: 45-50 Shores D
• Tensile Strength: 12 Mpa
• Break down Elongation: ≥ 400 %
• Adhesive Melting Point: 90°C
• Removed Strength from Steel: 30 N/cm2 at 23°C
• Appropriate RoHS Standards
• The excellent movement stability and credibility, good covering
cable, easy mounting, excellent.
SuItable Cable Types:
YVV-U, YVV-R, CU/PVC/PVC, NYY, N2XY Use for, PVC insulations, HEPR, EPR, XLPE, other side, armour cables, mining, ship, airport lighting, railway, control, telephone, water pump, submersible pump, data and fiber cables.

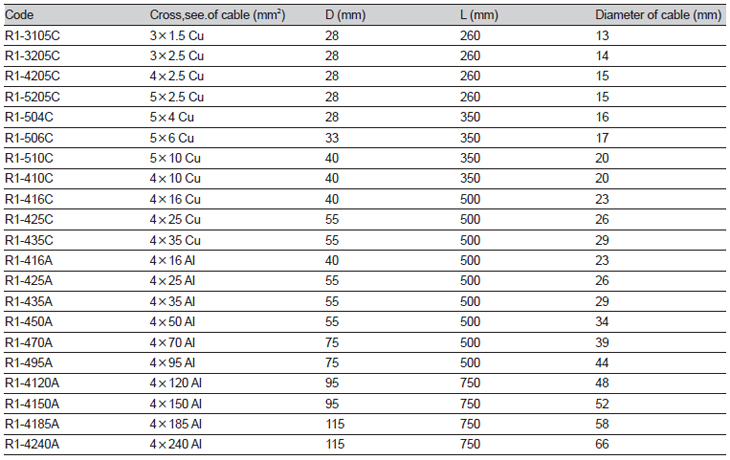

Product Dimensions:
